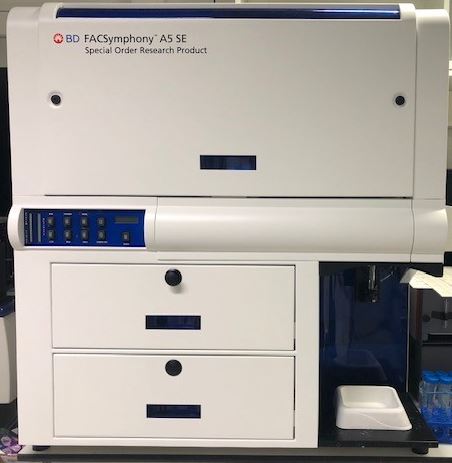

BD FACSSymphony™ Geb. 308A, Raum 3.121
The 48 colours Symphony is equipped with 5 lasers:
349nm 60mW / 405nm 200mW / 488nm 150mW
561nm 150mW / 637nm 140mW
Standard configuration:
| Laserline nm | BP Filter | LP Mirror | Example Markers | Laserline nm | BP Filter | LP Mirror | Example Markers | |
| 349 UV | 379/34 | 365 | BUV395 | 488 Blue | 510/20 | 500 | BB515 | |
| 349 UV | 447/67 | 425 | DAPI | 488 Blue | 537/32 | 520 | RB545 | |
| 349 UV | 515/60 | 495 | BUV496 | 488 Blue | 576/20 | 570 | SB574 | |
| 349 UV | 540/20 | 535 | Fix Aqua | 488 Blue | 602/40 | 585 | RB613 | |
| 349 UV | 585/30 | 570 | BUV563 | 488 Blue | 660/30 | 645 | BB660 | |
| 349 UV | 610/30 | 595 | BUV615 | 488 Blue | 675/20 | 665 | RB670 | |
| 349 UV | 660/30 | 645 | BUV661 | 488 Blue | 710/50 | 685 | RB705 | |
| 349 UV | 695/40 | 675 | Qdot 705 | 488 Blue | 750/60 | 724 | RB744 | |
| 349 UV | 736/64 | 704 | BUV737 | 488 Blue | 810/79 | 770 | RB780 | |
| 349 UV | 809/82 | 765 | BUV805 | 561 YG | 585/30 | 570 | RY586 | |
| 405 V | 427/25 | 415 | BV421 | 561 YG | 602/40 | 595 | RY610 | |
| 405 V | 450/40 | 430 | Pacific Blue | 561 YG | 660/30 | 645 | PE-Cy5 | |
| 405 V | 470/15 | 465 | BV480 | 561 YG | 670/20 | 665 | 7-AAD | |
| 405 V | 510/40 | 495 | BV480 | 561 YG | 695/40 | 680 | RY703 | |
| 405 V | 540/20 | 530 | BV510 | 561 YG | 730/50 | 699 | PE-F700 | |
| 405 V | 576/20 | 570 | BV570 | 561 YG | 750/40 | 735 | PE-F744 | |
| 405 V | 595/30 | 585 | Fix Yellow | 561 YG | 780/60 | 750 | RY775 | |
| 405 V | 615/25 | 605 | BV605 | 561 YG | 826/49 | 800 | PE-F810 | |
| 405 V | 660/30 | 645 | BV650 | 637 Red | 660/30 | 645 | APC | |
| 405 V | 680/30 | 665 | SB V670 | 637 Red | 675/20 | 665 | AF660 | |
| 405 V | 710/40 | 690 | BV711 | 637 Red | 680/30 | 680 | AF680 | |
| 405 V | 750/40 | 730 | BV750 | 637 Red | 710/25 | 669 | AF700 | |
| 405 V | 785/50 | 765 | BV785 | 637 Red | 730/50 | 720 | R718 | |
| 405 V | 845/70 | 810 | Qdot800 | 637 Red | 780/60 | 750 | APC-H7 |
