Aria III

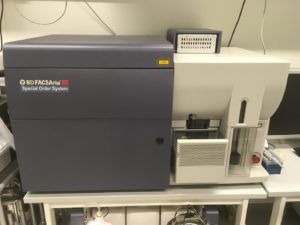

BD FACSAria™ III               Geb. 308A, Raum 3.121



The Aria III is equipped with 5 lasers:

355nm 20mW / 405nm 100mW / 488nm 100mW

561nm 100mW / 640nm 40mW

18 colours + FSC / SSC

Standard configuration:

Laserline Mirror Filter Example Markers
355 UV 690 LP 725/40 BUV737
355 UV 502 LP 530/30 BUV496
355 UV 385/26 BUV395
405 Violet 750 LP 780/60 BV786
405 Violet 690 LP 710/50 BV711
405 Violet 630 LP 660/20 BV650
405 Violet 595 LP 610/20 BV605
405 Violet 505 LP 525/50 BV510
405 Violet 450/40 BV421
488 Blue 735 LP 780/60 PE-Cy7
488 Blue 610 LP 675/20 PerCP-Cy5.5
488 Blue 505 LP 530/30 FITC
488 Blue 488/10 SSC
561 YG 635 LP 670/30 PE-Cy5
561 YG 600 LP 615/20 PE-TexasRed
561 YG 586/15 PE
640 Red 735 LP 780/60 APC-Cy7
640 Red 685 LP 710/40 AlexaFluor700
640 Red 661/20 APC

Filter set for simultaneous detection of CFP, GFP and YFP available.

455LP 470/20 BP CFP
495LP 510/20 BP GFP
525LP 542/27 BP YFP
